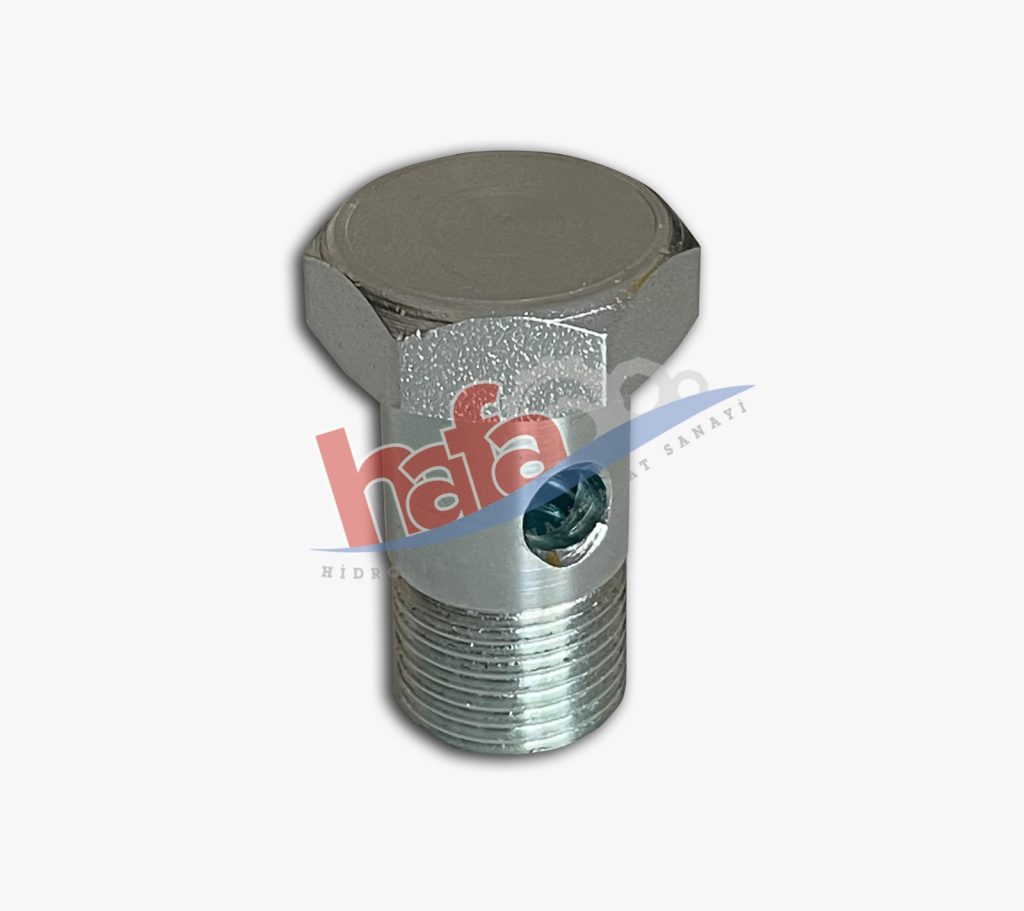

Civata Rakorlar

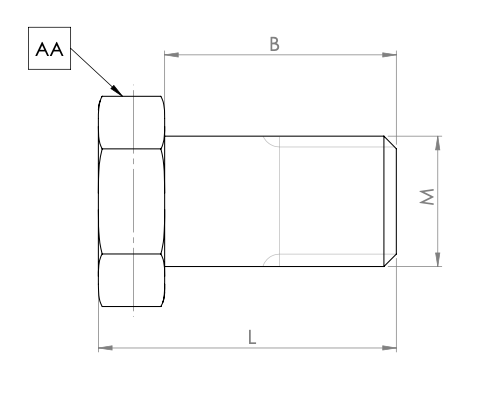

STOK KODU | ANAHTAR AĞZI (AA) | VİDA ÖLÇÜSÜ (M) | (L) | (B) |
---|---|---|---|---|
HF 1220 C | 17 mm | W1/2-20 mm | 30 mm | 23 mm |
HF 0601 C | 10 mm | M6X1 mm | 20 mm | 16 mm |
HF 0801 C | 12 mm | M8X1 mm | 22 mm | 17 mm |
HF 08125 C | 12 mm | M8X1.25 mm | 22 mm | 17 mm |
HF 1001 C | 14 mm | M10X1 mm | 25 mm | 20 mm |
HF 10125 C | 14 mm | M10X1.25 mm | 25 mm | 20 mm |
HF 1015 C | 14 mm | M10X1.5 mm | 25 mm | 20 mm |
HF 1215 C | 17 mm | M12X1.5 mm | 30 mm | 23 mm |
HF 1415 C | 19 mm | M14X1,5 mm | 33 mm | 23 mm |
HF 1615 C | 22 mm | M16X1,5 mm | 36 mm | 28 mm |
HF 1815 C | 24 mm | M18X1,5 mm | 40 mm | 32 mm |
HF 516-14 C | 27 mm | M20X1,5 mm | 44 mm | 35 mm |
HF 516-16 C | 30 mm | M22X1,5 mm | 46 mm | 36 mm |
HF 380-12 C | 32 mm | M24X1,5 mm | 48 mm | 38 mm |
HF 380-13 C | 36 mm | M26X1.5 mm | 50 mm | 40 mm |
STOK KODU | ANAHTAR AĞZI (AA) | VİDA ÖLÇÜSÜ (M) | (L) | (B) |
---|---|---|---|---|
HF 120-14 C | 14 mm | R1/8-28 mm | 25 mm | 20 mm |
HF 120-16 C | 19 mm | R1/4-19 mm | 32 mm | 25 mm |
HF 120-18 C | 22 mm | R3/8-19 mm | 39 mm | 31 mm |
HF 120-20 C | 27 mm | R1/2-14 mm | 43 mm | 35 mm |
