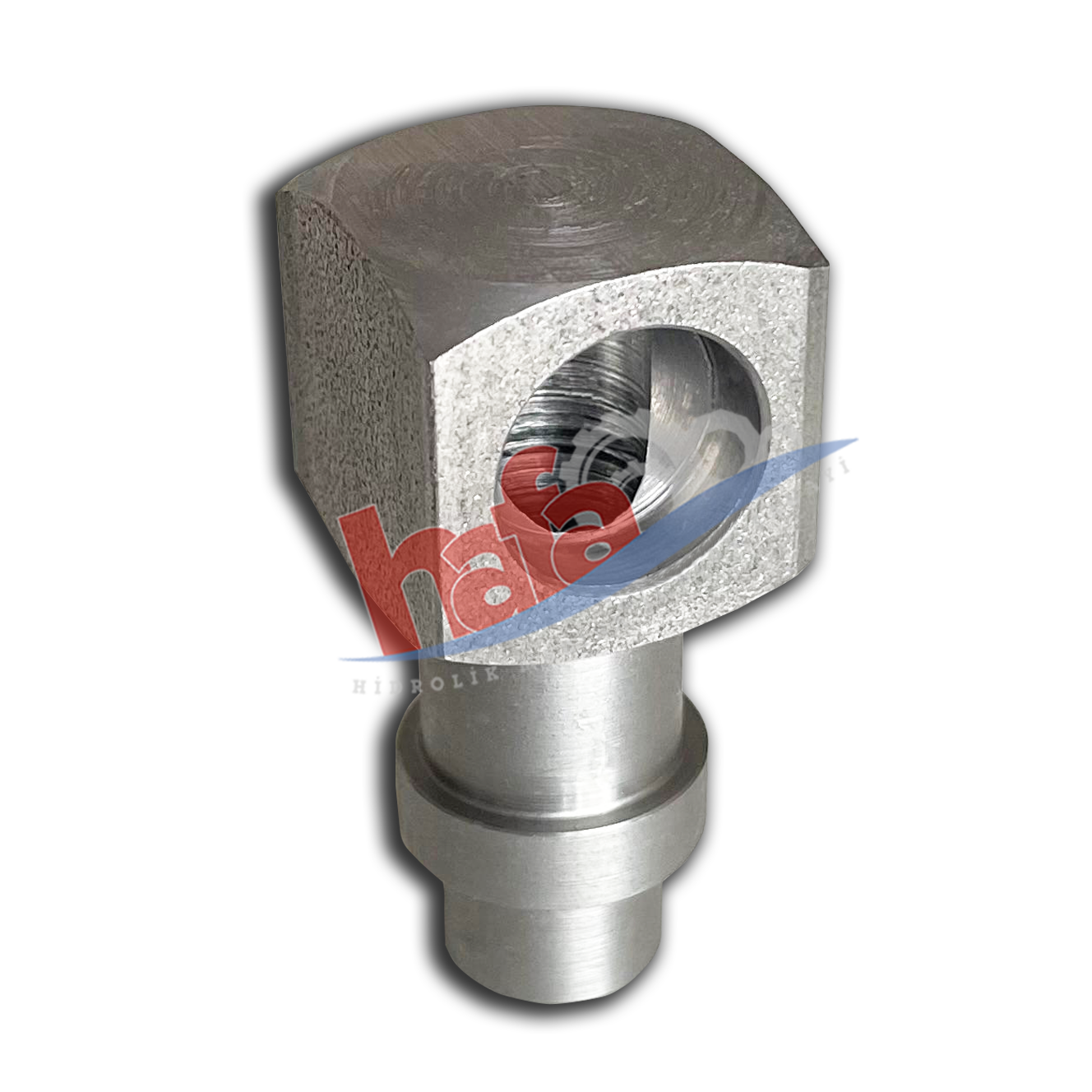

Kare Halka Rakorlar
Kare Halka Rakorlar

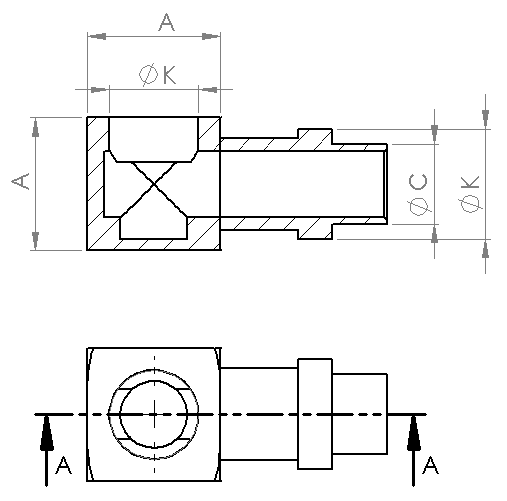

KOD NUMARASI | HORTUM ÖLÇÜSÜ | B | ØD | A | |
HORTUM ÇAPI | HALKA İÇİ ÇAPI | ||||
HFA – 31608 – PHR | 3/16 | 8 mm | 37,5 | 14 | 5,3 |
HFA – 31610 – PHR | 3/16 | 10 mm | 43,0 | 18 | 5,3 |
HFA – 14010 – PHR | 1/4 | 10 mm | 44,5 | 18 | 6,7 |
HFA – 14012 – PHR | 1/4 | 12 mm | 46,5 | 20 | 6,7 |
HFA – 14013 – PHR | 1/4 | 13 mm | 47,5 | 22 | 6,7 |
HFA – 14014 – PHR | 1/4 | 14 mm | 48,5 | 24 | 6,7 |
HFA – 14016 – PHR | 1/4 | 16 mm | 51,0 | 28 | 6,7 |
HFA – 14017 – PHR | 1/4 | 17 mm | 51,5 | 28 | 6,7 |
HFA – 51610 – PHR | 5/16 | 10 mm | 48,5 | 18 | 8,3 |
HFA – 51612 – PHR | 5/16 | 12 mm | 48,0 | 20 | 8,3 |
HFA – 51613 – PHR | 5/16 | 13 mm | 50,0 | 22 | 8,3 |
HFA – 51614 – PHR | 5/16 | 14 mm | 51,0 | 24 | 8,3 |
HFA – 51616 – PHR | 5/16 | 16 mm | 53,0 | 28 | 8,3 |
HFA – 51617 – PHR | 5/16 | 17 mm | 53,5 | 28 | 8,3 |
HFA – 51618 – PHR | 5/16 | 18 mm | 58,0 | 32 | 8,3 |
HFA – 51621 – PHR | 5/16 | 21 mm | 60,5 | 34 | 8,3 |
HFA – 38012 – PHR | 3/8 | 12 mm | 56,5 | 20 | 10,0 |
HFA – 38013 – PHR | 3/8 | 13 mm | 57,5 | 22 | 10,0 |
HFA – 38014 – PHR | 3/8 | 14 mm | 54,0 | 24 | 10,0 |
HFA – 38016 – PHR | 3/8 | 16 mm | 57,5 | 28 | 10,0 |
HFA – 38017 – PHR | 3/8 | 17 mm | 58,0 | 28 | 10,0 |
HFA – 38018 – PHR | 3/8 | 18 mm | 61,0 | 32 | 10,0 |
HFA – 38020 – PHR | 3/8 | 20 mm | 63,0 | 33 | 10,0 |
HFA – 38021 – PHR | 3/8 | 21 mm | 63,5 | 34 | 10,0 |
HFA – 38022 – PHR | 3/8 | 22 mm | 66,0 | 38 | 10,0 |
HFA – 12014 – PHR | 1/2 | 14 mm | 62,0 | 24 | 13,0 |
HFA – 12016 – PHR | 1/2 | 16 mm | 64,0 | 28 | 13,0 |
HFA – 12017 – PHR | 1/2 | 17 mm | 64,5 | 28 | 13,0 |
HFA – 12018 – PHR | 1/2 | 18 mm | 66,0 | 32 | 13,0 |
HFA – 12020 – PHR | 1/2 | 20 mm | 67,0 | 33 | 13,0 |
HFA – 12021 – PHR | 1/2 | 21 mm | 67,5 | 34 | 13,0 |
HFA – 12022 – PHR | 1/2 | 22 mm | 67,0 | 35 | 13,0 |
HFA – 12024 – PHR | 1/2 | 24 mm | 70,5 | 40 | 13,0 |
HFA – 12026 – PHR | 1/2 | 26 mm | 72,5 | 42 | 13,0 |
